More power. More control. More comfort.

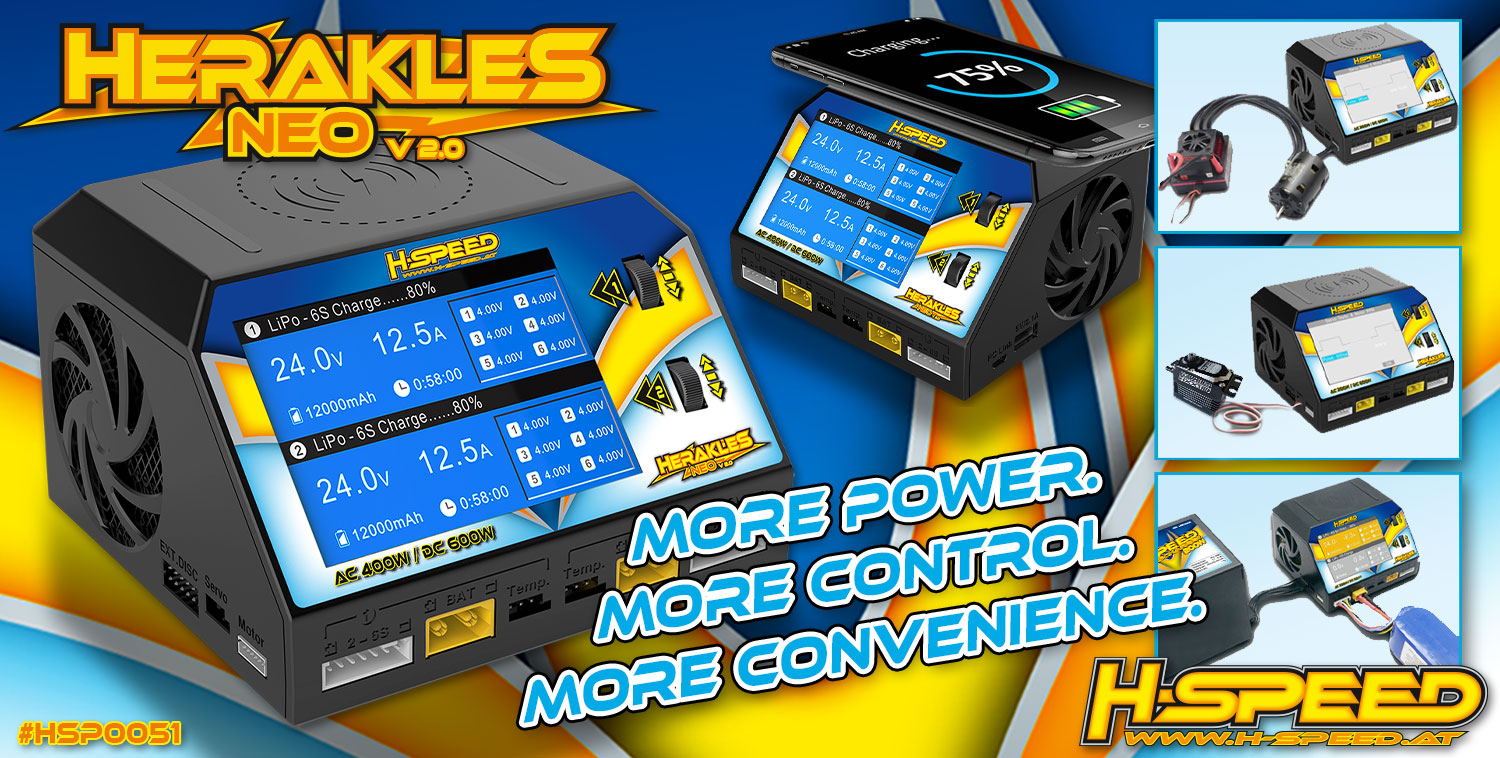

The HERAKLES NEO V2.0 delivers more power and optimized software for even more stable operations and more precise loading processes.
More power. More control. More convenience.
The HERAKLES NEO V2.0 delivers more power and optimized software for even more stable processes and more precise charging.
Dual charging without compromise – The two separate charging outputs allow different battery types to be charged simultaneously – ideal for model builders with multiple setups.
More watts, more options – The AC charging power has been increased from 300 to 400 watts, which saves time, especially with powerful battery packs. In DC mode, up to 300 watts are available per channel.
On-top features for modern RC users:
– Wireless charging for smartphones (up to 10W)
– Integrated servo and motor test connection
– Powerful balancer with up to 1000mAh/cell
Technical data:
– Input voltage: AC 100-240V, DC 9.0-30V
– Output voltage: 0.1-30V
– Charging current: 2x 0.1-16.0A
– Discharging current CH1: 0.1-3.0A/0.1-15.0A (external discharge mode)
– Discharging current CH2: 0.1-3.0A
– Charging power DC: 2x 300W
– Charging power AC: max. 400W (CH1+CH2=400W)
– Discharge power CH1: 8W/200W (external discharge mode)
– Discharge power CH2: 8W
– LiPo/LiFe/Lilon/LiHV number of cells: 1-6s
– NiCd/NiMH battery number of cells: 1-16s
– Pb battery current: 2V-24V (1-12s)
– Wireless charging power: max. 10W
– Balance current: max. 1000mAh/cell
– LCD screen type: 3.5″ 480×320 LCD
– Temperature: Operation: 0-40°C / Storage: -20°C to 60°C
– Dimensions: 125x119x76mm
– Weight: 780g
HSP0051 H-SPEED HERAKLES NEO V2.0 Dual charger
