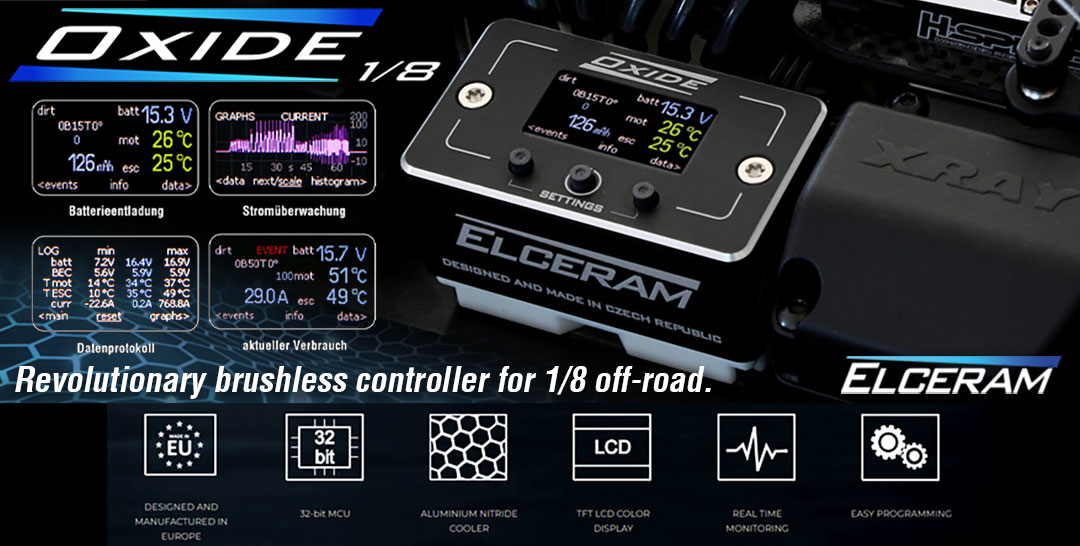

The Oxide 1/8 from ELCERAM brings groundbreaking innovations in real-time monitoring of battery current and discharge, as well as intelligent algorithms to protect the ESC. By using advanced cooling technology based on an aluminum oxide ceramic cooler, the Oxide 1/8 offers excellent thermal conductivity and can be used with powerful motors up to 2300kV. It features reverse polarity protection and improved water and dust resistance. The ESC stands out with its matte TFT-LCD color display, eliminating the need for an additional interface.

Features:
• Matte TFT-LCD color display: 160 x 80 pixels, easy operation with 3 buttons.
• Easy monitoring and adjustment: All important data before, during, and after the race.
• High-performance electronics for professional RC racing.
• Advanced cooling technology: Aluminum oxide heat sink, direct MOSFET cooling.
• Reverse polarity protection and intelligent protection algorithms.
• Compact dimensions: Suitable for all 1/8 off-road RC cars, 70% of weight at the bottom.
• Easy installation: Double-sided tape or M2.5 screws, interchangeable cover.
Technical Specifications:
• Scale: 1/8 Off-Road
• Type: Brushless Sensor
• Waterproof: Yes
• Reverse Polarity Protection: Yes
• Relevant Parameters: Continuous Current/Peak Current: 200A / 1500A
• Input Voltage: 2S – 4S LiPo
• Adjustable BEC Output Voltage: 6.0 – 8.4V
• BEC Current Continuous/Peak: 6A/15A
• Size: 50x40x28 mm
• Weight: 112 g without cables / Cables AWG11 – 200 mm
• BEC Cable Length: 180 mm, gray stripe is negative pole

Item No. ELC011 ELCERAM OXIDE 1/8 G1 Competition Off-Road ESC 2-4s
